Oasis Chinook Heater 240 VAC (Heater Only)

The Oasis Chinook

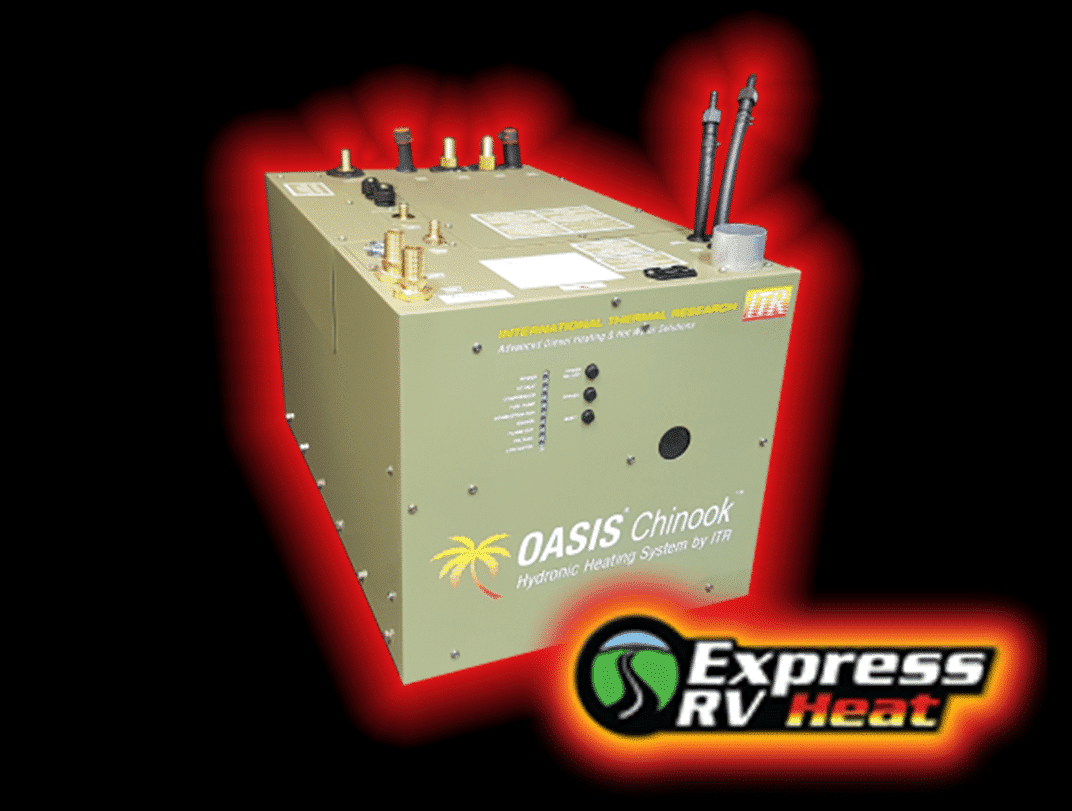

The OASIS CHINOOK is an all-in-one, dual loop space heating and on-demand hot water system. It is easy to install and requires no side access for service or maintenance.

$6,770.00

Oasis Chinook Heater 240 VAC (Heater Only)

Description

The OASIS CHINOOK delivers a robust 50,000 true output BTU, further enhanced by dual 1500-watt AC electric elements that contribute an additional 10,000 BTU to the system. Built with durability in mind, the CHINOOK features a marine-grade coolant tank and a high-temperature stainless steel burner tube. It incorporates innovative features such as patented “never-run-dry” circulation pump protection, easy air-purging and coolant-fill operations, and a freeze-protected tank design to ensure reliable performance in various environments. In addition to its powerful heating capabilities, the system provides space heating to up to five different zones and continuously delivers on-demand 120°F hot water at a flow rate of 1.5 gallons per minute without compromising space heating.



Diesel Burner TRUE OUTPUT
50,000 BTU
Auxiliary Electrical Heat
2 x 1500 watt element (10,000 BTU)
Burner Design
Proprietary ITR low pressure system
Continuous Water Temperature & Flow Rate
120 °F @ 1.5 GPM
Continuous Temperature Rise (ΔT) of Incoming Potable Water
60 °F
Interior Heat Available While Using Hot Water
YES
Touch Screen Remote Interface
OPTIONAL
Coolant Tank Capacity
7 gallons
Fuel Consumption (continuous running)
0.46 gallons/hour
System Voltage
12 VDC
Amperage Draw Running (running)
6.5 Amps + 2.5 Amps for circ. pump
Amperage Draw (heat loop pumps)
5 Amps (2.5 Amps each)
Available Heating Zones
5
Heating Circulation Loops
2
Coolant / Water Connection
3/4″ Barb/1/2″ PEX
Exaust Outlet Connection
1.5” FPT
Dimensions
15” H x 16” W x 25” D
Weight (empty/full):
105 Ibs / 166 Ibs
